This EC Inline Duct Fan is a compact, energy-efficient ventilation fan designed for small to medium airflow applications.
Equipped with a high-performance EC motor, it delivers strong static pressure, low noise, and significantly reduced power
consumption compared to traditional AC fans. Ideal for HVAC systems, grow tents, bathrooms,
crawl spaces, basements, and air-circulation projects.

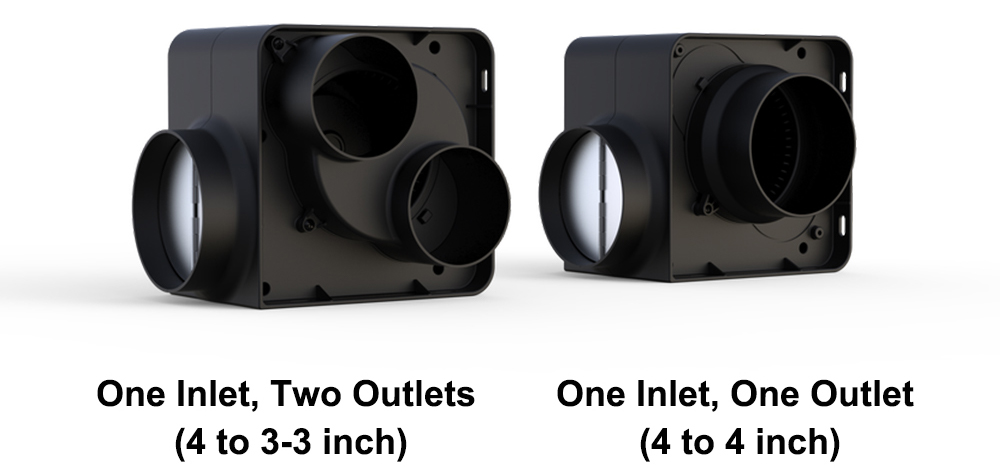

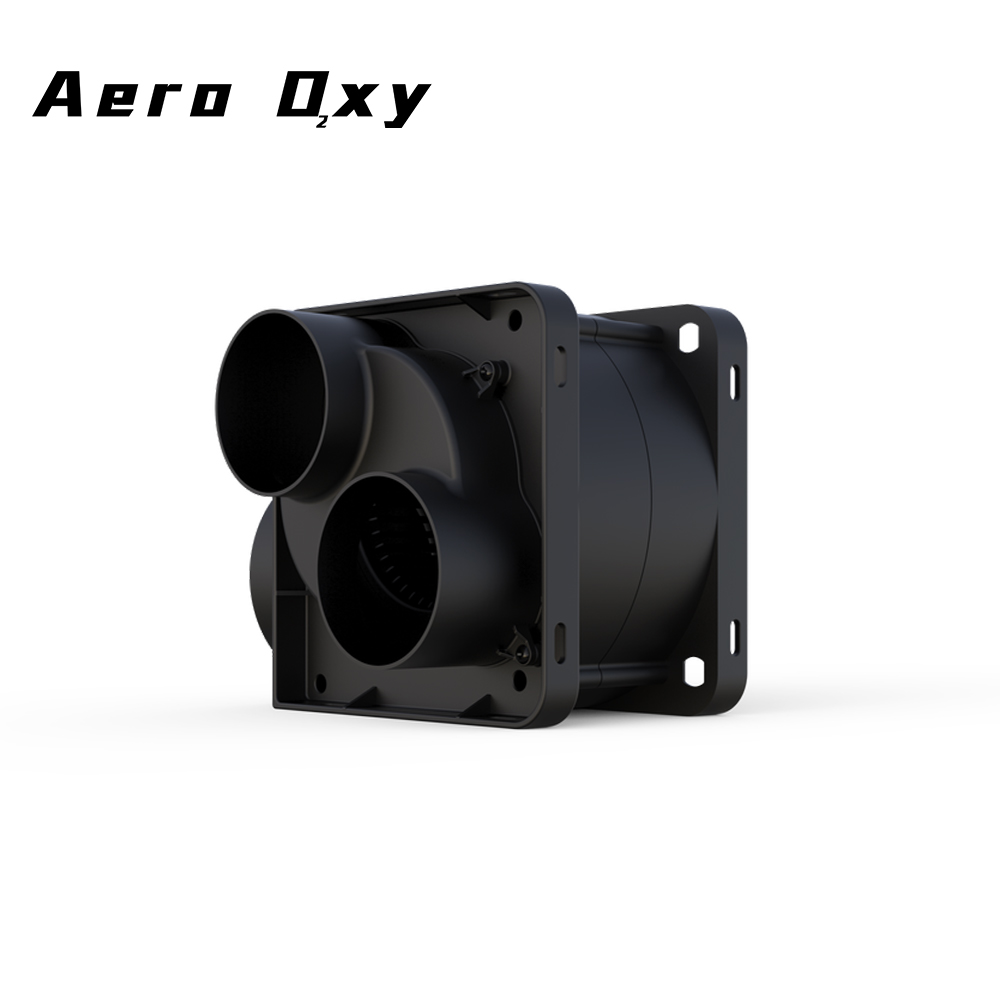

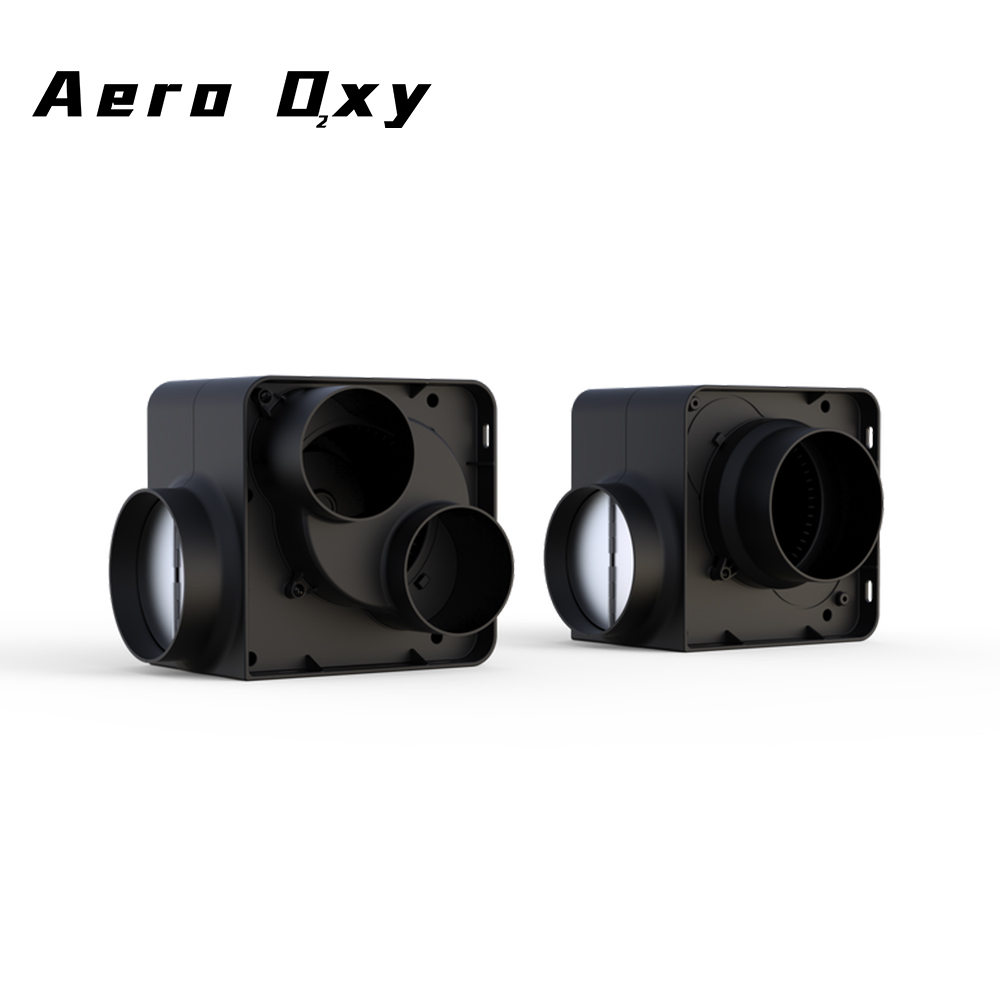

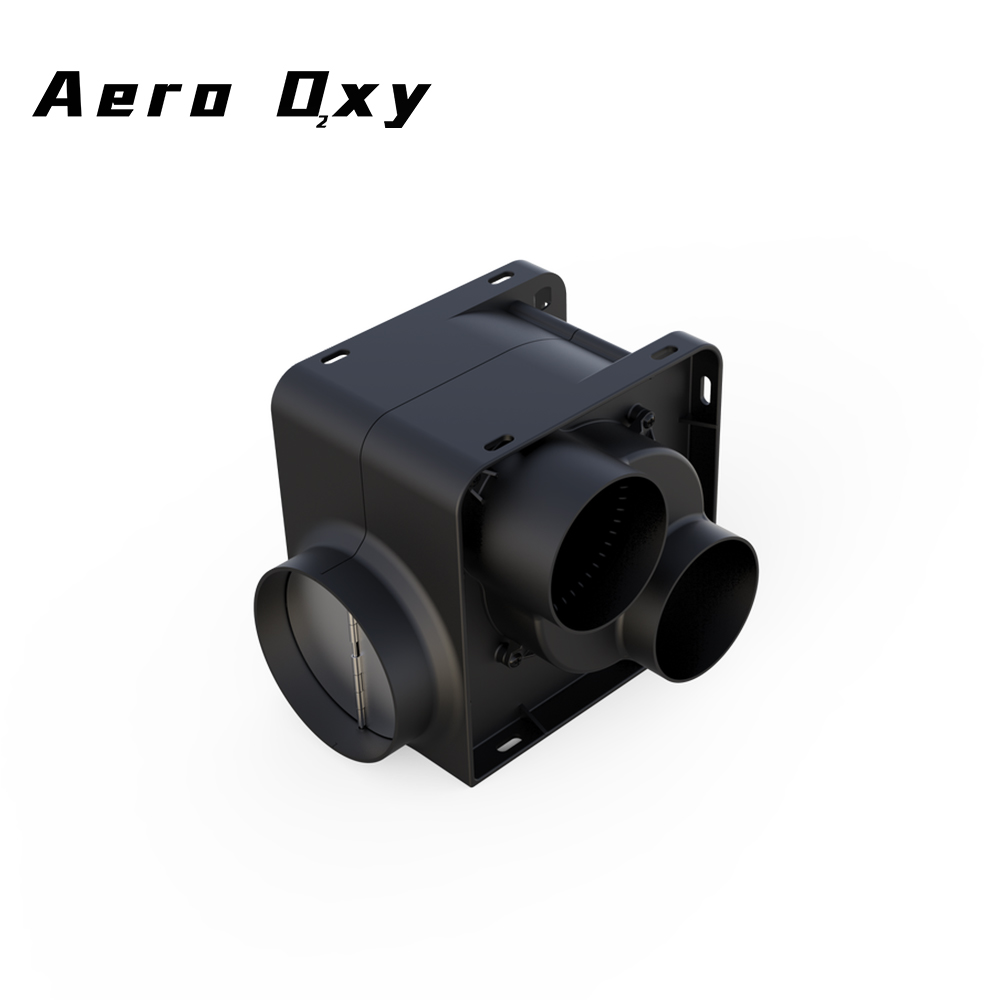

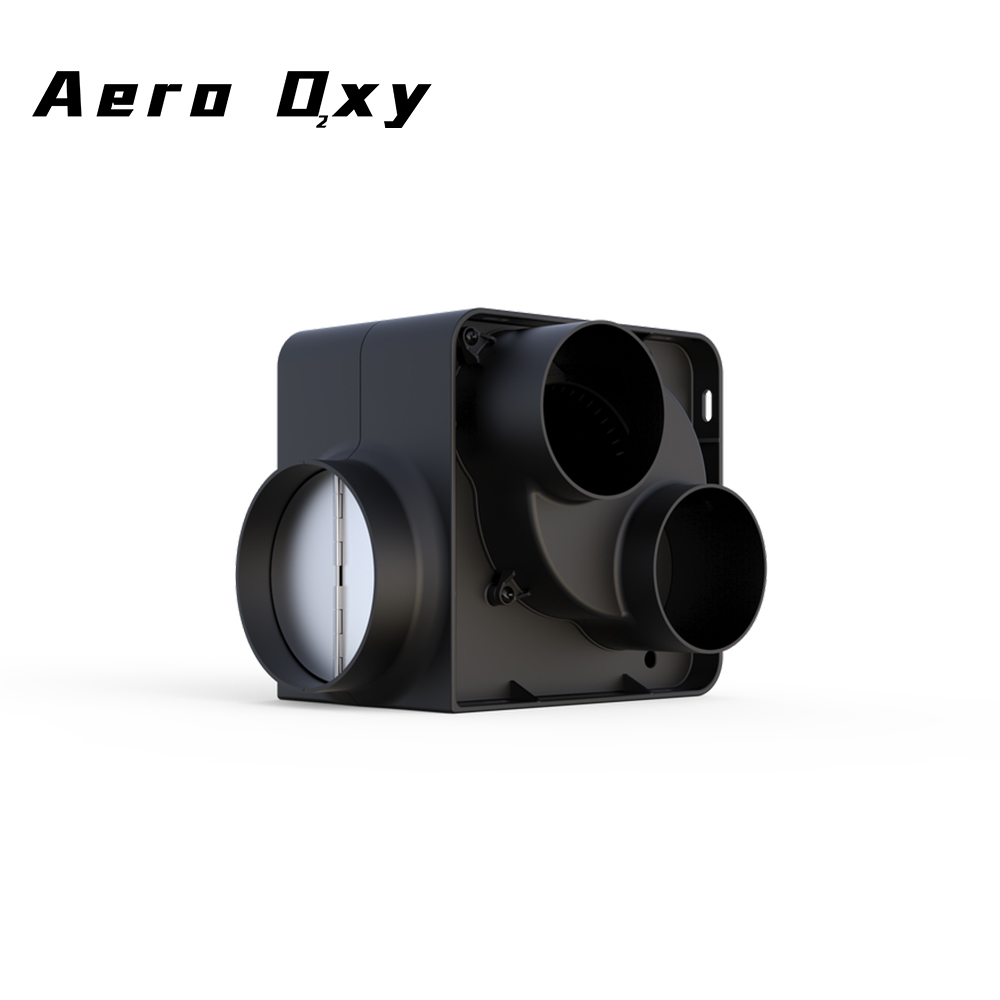

Split Inline Fan – One Inlet, Two Outlets (4 to 3-3 inch)
Designed with one air inlet and two air outlets, allowing a single fan unit to distribute airflow to two
separate duct branches simultaneously.

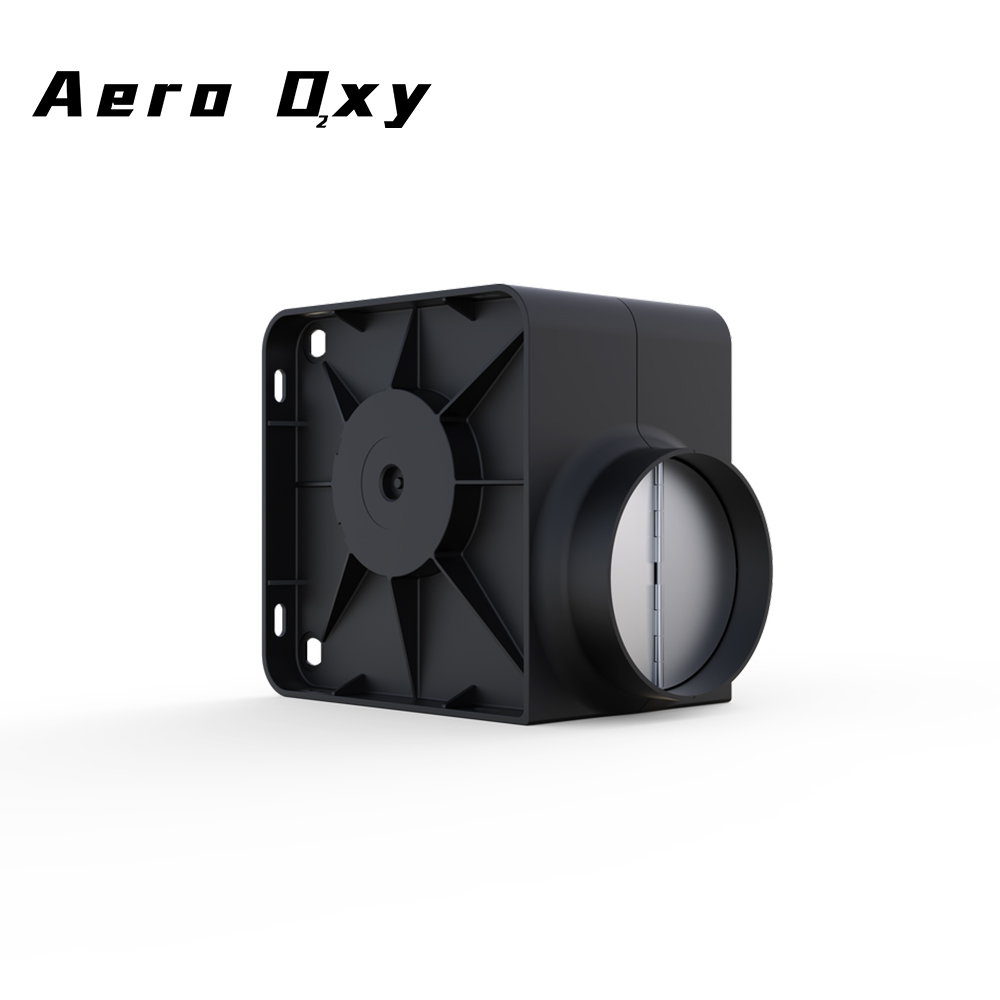

Split Inline Fan – One Inlet, One Outlet (4 to 4 inch)
The Split Inline Fan features a standard one-inlet, one-outlet inline airflow configuration,
designed for efficient air supply or exhaust in ducted ventilation systems.
| Model | Size(mm) | Air Inlet Size (mm) | Air Outlet Size (mm) | Voltage （V/Hz) | Power (W) | Speed (RPM) | Air Volume (m3/h) | Staic Pressure (Pa) | Noise (dB) |
| DV-2ST | 198x168x160 | Dia.75 | Dia.100 | 220~240V 50/60Hz | 22 | 2000 | 228 | 304 | 38 |
| DV-1ST | 198x168x161 | Dia.100 | Dia.100 | 22 | 2000 | 252 | 352 | 39 | |
| DV-1ST | 198x168x161 | Dia.100 | Dia.100 | 15 | 1600 | 185 | 168 | 33 |
